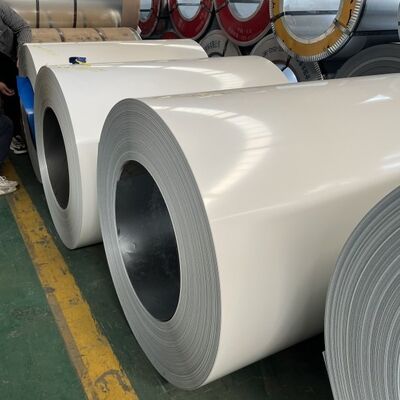

Insulating PVDF Coated DX51D+AZ Prepainted Galvalume Steel Coil for Energy Efficient Roofs
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | HUIYI-PPGL |
| Certification: | ASTM A792, JIS G3321, EN 10346, ISO9001 |
| Numéro de modèle: | DX51D+AZ, SGLCC |
| Documents: | HUIYI CATALOGUE.pdf |
Conditions de paiement et expédition:
| Quantité de commande min: | 25 tonnes par épaisseur |
|---|---|
| Prix: | negotiated |
| Détails d'emballage: | Emballage d'exportation standard. Écrit avec du papier étanche. |
| Délai de livraison: | 20-35 jours |
| Conditions de paiement: | LC, T/T, D/P |
| Capacité d'approvisionnement: | 50000 tonnes par an |
|
Détail Infomation |
|||
| Nom du produit: | Acier enduit d'une première couche de peinture de Galvalume | Grade: | DX51D+AZ |
|---|---|---|---|
| Revêtement de zinc: | 80-180g/㎡ | Composition du revêtement: | ~55 % d'aluminium, ~43,5 % de zinc, ~1,5 % de silicium |
| Type de revêtement: | PE/SMP/PVDF/HDP | Épaisseur de peinture: | Top: 10-25 μm ； arrière: 5-8 μm |
| Identifiant de la bobine: | 508 mm ou 610 mm | Caractéristique clé: | Isolant / Réfléchissant à la chaleur solaire |
| Mettre en évidence: | Insulating PPGL Steel Coil,PVDF Coated Galvalume Steel Coil,DX51D+AZ Prepainted Galvalume Steel Coil |
||
Description de produit
Our Insulating PVDF DX51D+AZ Prepainted Galvalume Steel Coil is engineered specifically for energy-saving roofing applications. This premium product combines a durable DX51D+AZ galvalume steel base with a high-performance PVDF topcoat, delivering exceptional long-term corrosion resistance, superior color retention, and outstanding weatherability. The key insulating property reflects solar heat to enhance building energy efficiency and significantly reduce cooling costs, providing a durable, low-maintenance "cool roof" solution for modern construction projects.
| Parameter | Specification |
|---|---|
| Base Material | Galvalume Steel |
| Protective Coating | Hot-dip 55% Aluminum-Zinc Alloy |
| Topcoat / Finish | High-quality PVDF Paint |
| Coating Weight Range | AZ80 - AZ180 g/m² |
| Thickness Range | 0.3mm - 2.0mm |
| Width Range | 600mm - 1,500mm |
| Standard Coil Weight | 3-8 tons |
| Surface Treatment | Passivation, Oiled, or Anti-Fingerprint |
- Energy-Efficient Building Roofs: Primary application for standing seam roofs, corrugated sheets, and other roofing systems designed to meet green building standards and reduce cooling costs.
- Commercial & Industrial Wall Cladding: Provides a long-lasting, attractive, and thermally efficient facade for warehouses, factories, and commercial buildings.
- Architectural Canopies & Sunshades: Used in structures designed to provide shade while maintaining high visual and corrosion performance.
- Renovation & Retrofit Projects: Excellent solution for upgrading existing buildings to improve energy efficiency and appearance.
VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Pre-shipment inspection and moisture indicators for transit protection.
