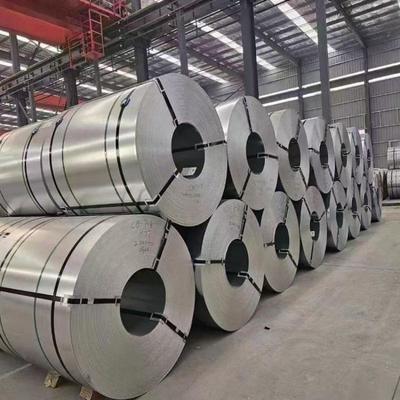

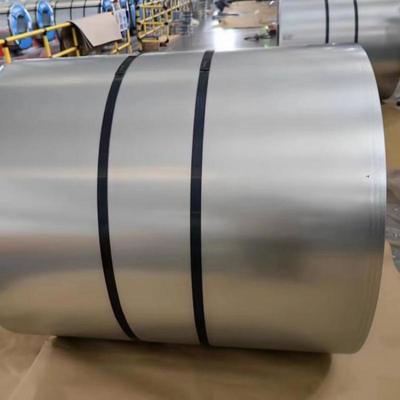

S450GD+AZ Galvalume Steel Coil 610mm for Construction Material
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | Huiyi-GL |
| Certification: | ISO9001 |
| Numéro de modèle: | SGLCC, G550 |
Conditions de paiement et expédition:
| Quantité de commande min: | 25 tonnes |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Exportation de l'emballage avec 3Layers, y compris le film en plastique imperméable ， Papier imp |
| Délai de livraison: | 15-30 jours |
| Conditions de paiement: | L / C, D / P, T / T |
| Capacité d'approvisionnement: | 5000mt / mois |
|
Détail Infomation |
|||
| Nom de produit: | Coils en acier GL | Revêtement d'Alu-zinc: | 55% ALU, 43,5% de zinc, 1,5% de Si |
|---|---|---|---|
| Revêtement de zinc: | 30-150g/㎡ | ID de bobine: | 508 mm / 610 mm |
| Largeur: | 600-1500 mm | Forme: | Plat, bobine |
| Trimestre de paiement: | T / T, L / C, D / P | Traitement de surface: | Huiled, chromé et antigone empreintes |
| Mettre en évidence: | S450GD+AZ Galvalume Steel Coil,Galvalume Steel Coil 610mm,construction material steel coil |
||
Description de produit
S450GD+AZ Galvalume Steel Coil 610mm for Construction Material
Engineered for superior structural performance, our S450GD+AZ Galvalume Steel Coils are high-strength substrates coated with a 55% aluminum-zinc-silicon alloy. Unlike standard Galvalume, this coil is defined by its S450GD grade, which provides a minimum yield strength of 450 MPa, making it exceptionally strong and load-bearing. Specifically designed for demanding construction frameworks, this product combines the durability of Galvalume with the rigidity of high-tensile steel, offering a robust, long-lasting solution for structural applications.
Specification
| Type | Galvalume Steel Coil |
|---|---|
| Thickness | 0.12-2.0mm |
| Width | 600mm-1500mm |
| Coating Type | AZ30-AZ150 |
| Standards | ASTM A792, JIS G3322, EN 10147, AS 1397 |
| Production process | Cold base |
| Hardness | Soft (normal)/ Hard/ Full hard |
| Steel Grade | DX51D+AZ, DX52D+AZ, S450GD+AZ |
Applications
This high-strength S450GD+AZ Galvalume coil is specifically engineered for construction applications where load-bearing capacity and corrosion resistance are critical.
- Structural Building Framing: Ideal for primary and secondary structural components like purlins, girts, and steel trusses in industrial warehouses and commercial buildings.
- Heavy-Duty Support Systems: Used in the fabrication of load-bearing platforms, mezzanine floors, and walkways, where its high yield strength ensures safety and longevity.
- External Cladding and Roofing Substrates: Serves as a durable base for insulated panels and standing seam roofs, providing a strong, rust-resistant foundation that withstands harsh weather.
- Infrastructure and Guardrails: Perfect for highway sound barriers, security fencing panels, and other infrastructure projects requiring a combination of strength, durability, and minimal maintenance.
Packing and Shipping
To ensure the integrity of the high-strength edges and surface, each coil is protected with VCI anti-rust paper, reinforced waterproof PE film, and custom steel-edge protectors on wooden pallets (max 10 tons). We ship globally via FOB/CIF from main Chinese ports, with reliable delivery timelines.
FAQ
Q: What is the main advantage of S450GD+AZ over DX52D+AZ?
A: The key difference is strength. S450GD+AZ has a minimum yield strength of 450 MPa, making it a structural grade ideal for load-bearing components. DX52D is a commercial grade with higher formability but lower strength, suited for non-structural applications.
Q: How does the AZ30-AZ150 coating weight range benefit my construction project?
A: The AZ30-AZ150 coating range allows for precise cost-to-performance optimization. Lighter coatings (e.g., AZ30-AZ70) are ideal for interior structural members or less aggressive environments, offering excellent value. Heavier coatings (e.g., AZ100-AZ150) provide maximum longevity for exposed structural components, safeguarding your project against corrosion for decades.
Q: Is this coil suitable for direct exposure without painting?
A: Yes, the Galvalume coating provides excellent corrosion resistance on its own. However, the zero-spangle finish is also ideal if you plan to apply a paint system for additional aesthetics or specific environmental protection.
